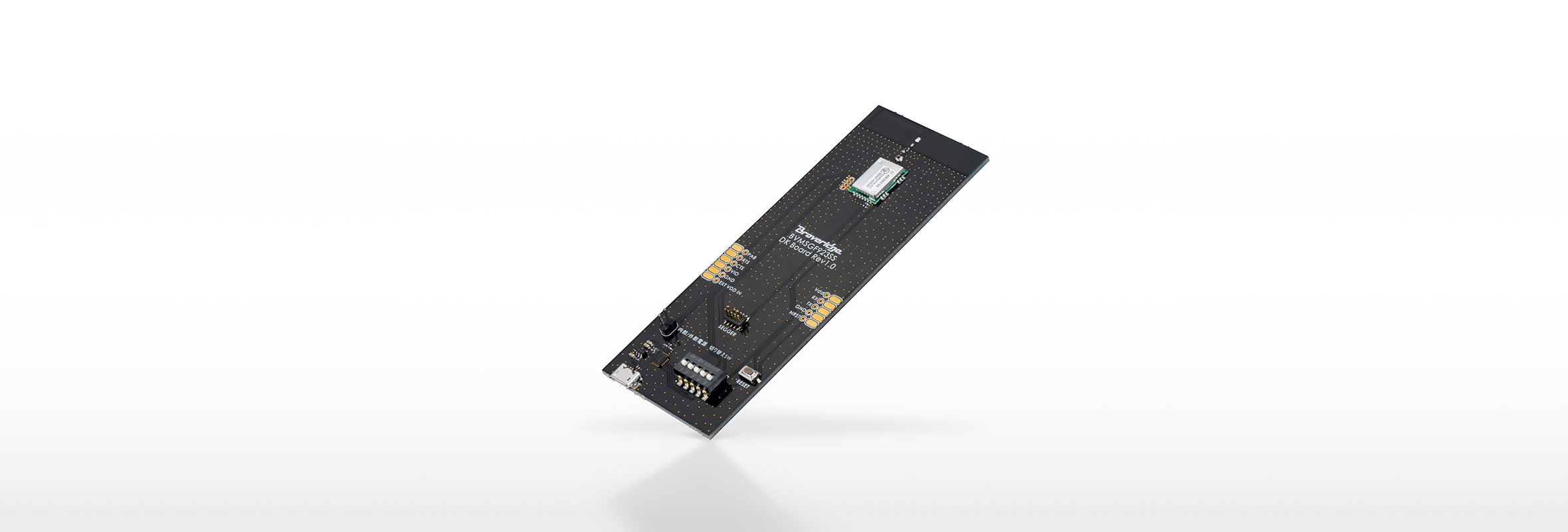

Development board of Sigfox modem module "BVMSGF923SS", equipped with RF transceiver "S2-LPQTR" manufactured by STMicroelectronics.
SonicBoard series is a breakthrough concept of development board designed to help engineers slash development lead time and cost of IoT based solutions by publishing Braveridge's reference source code and reference circuit diagram in an editable state.
The circuit diagram of each SonicBoard has been released as a project file format that can be edited with the electronic CAD software Quadcept.
The device's circuit can be configured simply by wiring and connecting to each SonicBoard such as SonicBoard GNSS, 2 SonicBoard Bluetooth LE models previously announced, SonicBoard LTE-M, SonicBoard Wi-Fi to be announced in the future and various sensor boards, which gives software developers a kickstart even before prototyping.
This product comes with an antenna, a power supply circuit, and a USB serial converter circuit. As the program files, ID, and PAC are programmed at our factory, connection can be confirmed immediately. (registration required for Sigfox Cloud)
- Powered with ultra-low power consumption Sigfox model module "BVMSGF923SS" incorporating STMicroelectronics S2-LP.
- With the test wire etc. included in the set, it can be readily connected to the board and to the motherboard for evaluation.
- Sigfox Verified RC3c P1, Japan Radio Law certified
|Installed module||Ultra low power consumption Sigfox modem module, BVMSGF923SS|
|Certification||Sigfox Verified RC3c P1, Japan Radio Law Certified|
|PC interface||USB Micro B terminal (UART connection)|
|Module operating voltage||1.8 to 3.6V (Typ:3.0V).
Power can be supplied from USB Micro B terminal (power supply circuit incorporated).
|Size||W 125.5mm x D 45mm x H 12mm|
|Included items||1 Micro-USB cable, 10 test wires, 3 jumper pins|
For details, please see the product specification.
Product specifications are subject to change without notice.
ELECTRICAL DESIGN CAD DATA
CAD data in project file format that can be edited with the electronic CAD software "Quadcept".
Click here to request a quote for this product.
