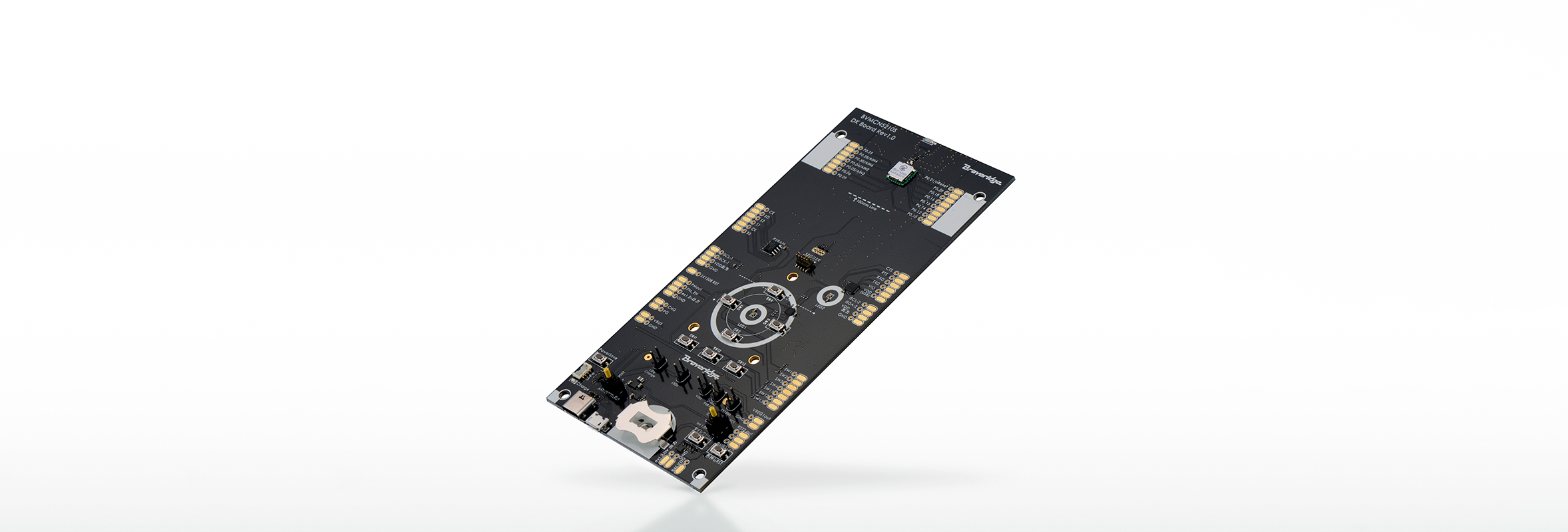

Development board of Bluetooth®LE module "BVMCN5210S", equipped with SoC "nRF52810" manufactured by Nordic Semiconductor.
Evaluation is made easy by attaching a pin header to the board connecting to the breadboard etc. and then to a sensor etc. As it also includes USB-UART converter IC (CP2102), UART communication with PC etc. is accessible. By "FBV-EVK-N9160" and "FBV-EVK-CN52840CFSLR" having the same form factor inclusive of almost all the peripherals required for development, it is a "Complete" development board.
|Installed module||Bluetooth®︎LE module BVMCN5210S|
|Frequency Range||2402MHz to 2480MHz|
|-40dBm to +4dBm|
|Power Supply||5V (MicroUSB and Type-C)|
|Operating Voltage||1.7 to 5.5v (Typ:3.0V)|
|LED||2 (full color)|
|Included Items||1 L-Link Lite Segger, 4 pan head screws, 4 steel spacers, 1 Micro USB cable, 7 jumper pins, 10 through hole test wires|
|Size||W 80.0mm x D 173.5mm x H 14.0mm|
|Certification||Japan Radio Law, Bluetooth SIG|
For details, please see the product specification.
Product specifications are subject to change without notice.
ELECTRICAL DESIGN CAD DATA
CAD data in project file format that can be edited with the electronic CAD software "Quadcept".
Click here to request a quote for this product.
