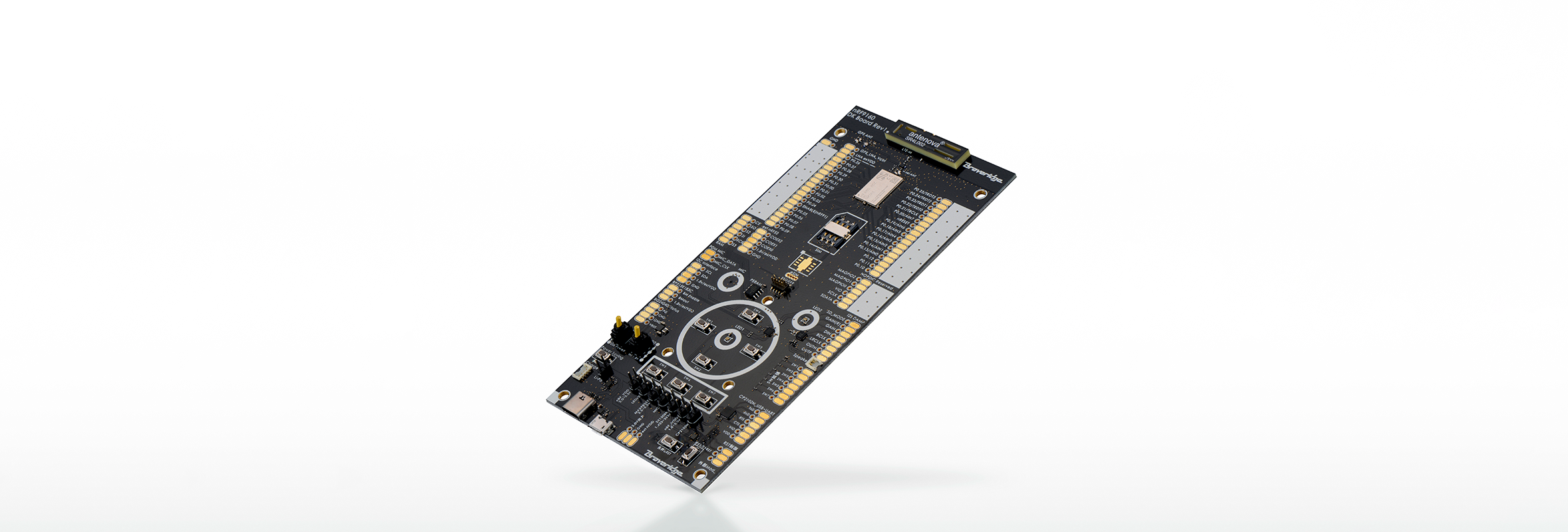

Development board equipped compact, low-power cellular IoT module "nRF9160" manufactured by Nordic Semiconductor.

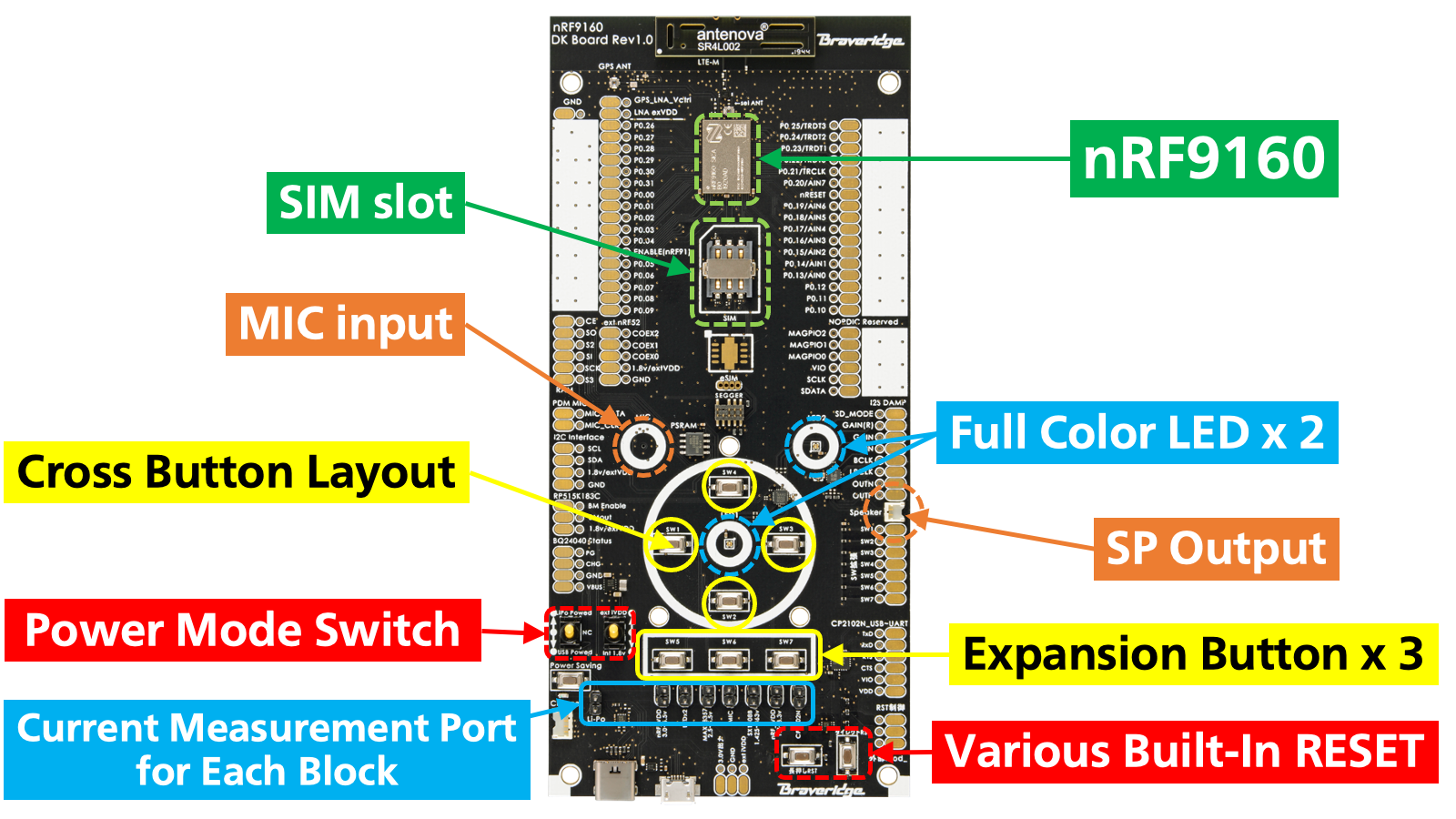

To optimize the most energy-efficient cellular IoT solution on the market, "nRF9160", all the abundant I/O ports are fully integrated on the board. Power option is either battery or DC power supply (AC adapter), but it also comes with a charging circuit. Current consumption of each circuit block can also be measured individually. It is a "complete" Development board with almost all peripherals incorporated: Li-Po secondary battery charge discharge circuit, 8 switches, battery monitor, DCDC power supply, buttons, 2 full-color LEDs, various RESET circuits, and MIC/SP, etc.
|Installed module||Nordic Semiconductor's nRF9160 lower power SiP with integrated LTE-M/GPS|
|-40 to 23 dBm|
|LTE Antenna||Antenna integrated, external antenna can be used by connecting coaxial connector with switch|
|GPS Antenna||External antenna can be used by connecting coaxial connector with switch, LNA integrated|
|Power Supply||5V (USB Micro B and Type C) or supplied from external input terminal (iVDD_GPIO 1.8V to 3.3V, iVDD2 3.0 to 5.5V)|
|Jumper Pin||8 pin|
|Program Pin||9 pin connector for J-Link Lite Segger|
|Button||9 (7 general purpose buttons, 1 direct reset button, 1 long-press reset button)|
|LED||2 (full color)|
|SIM slot||nanoSIM (*SIM card is not included.)|
|Included Items||1 L-Link Lite Segger, 4 pan head screws, 4 steel spacers, 1 Micro USB cable, 8 jumper pins, 10 through hole test wires|
|Size||W 80.0mm x D 173.5mm x H 14.0mm|
|Certification||Telecommunications Business Law, Japan Radio Law|
For details, please see the product specification.
Product specifications are subject to change without notice.
