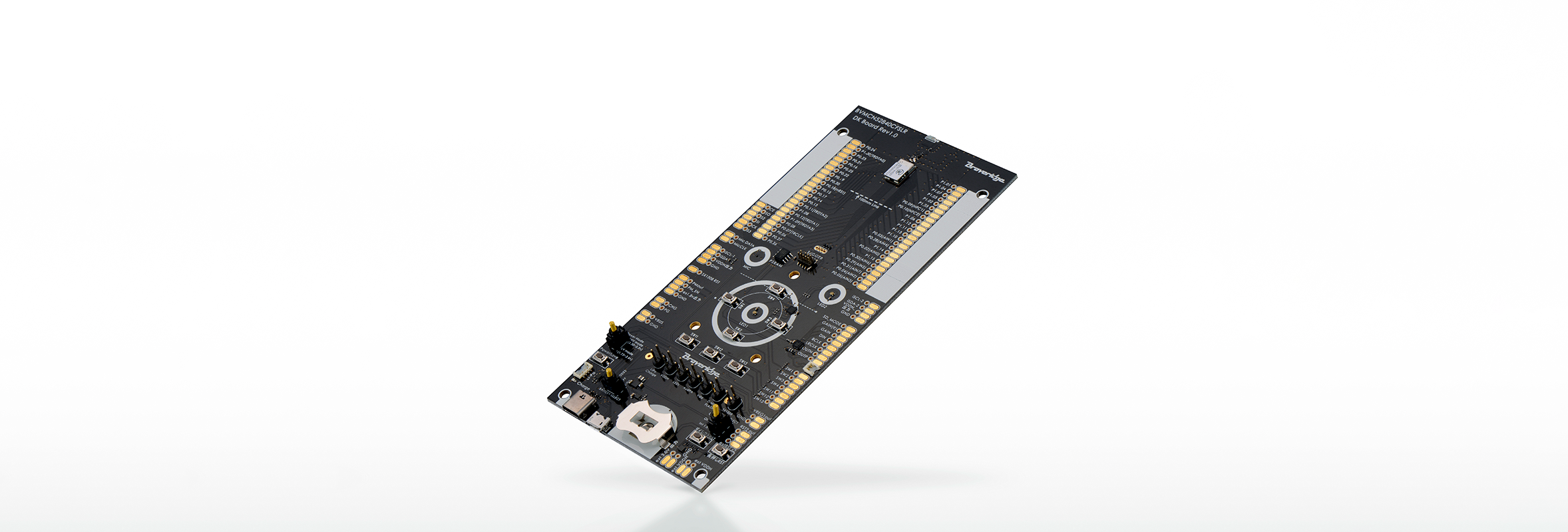

Development board of Bluetooth®LE module "BVMCN52840CFSLR", equipped with SoC "nRF52840" manufactured by Nordic Semiconductor.
Compatible with the latest Bluetooth® 5.0 Long-Range mode, we demonstrated in measurements 1.0km (reference value) actual line-of-sight range. This is a "complete" development board provisioned with LEDs expansion IO, digital microphone, audio amplifier, memory (PSRAM), charging IC ports etc., realizing all the low power consumption, long-distance communication, and abundance of I/O ports features of the "BVMCN52840CFSLR". With the test wires included in the kit, it can be readily connected to breadboards, sensors, and modules etc. for evaluation.
USB communication with PC etc. is possible.
By having the same form factor as "FBV-EVK-N9160", it also gives you the same consistent operation as various SonicBoards.
|Installed module||Bluetooth®︎LE module BVMCN52840CFSLR|
|Frequency Range||2402MHz to 2480MHz|
|-40dBm to +8dBm (long-range: +8dBm, legacy: up to +4dBm)|
|Antenna||Chip Antenna integrated, external antenna can be used by connecting coaxial connector with a switch|
|Power Supply||5V (USB Micro B and Type C) or supplied from external input terminal (1.7 to 5.5v) (Typ:3.0V)|
|Jumper Pin||７ pin|
|Program Pin||9 pin connector for J-Link Lite Segger|
|Button||9 (7 general purpose buttons, 1 direct reset button, 1 long-press reset button)|
|LED||2 (full color)|
|Included Items||1 L-Link Lite Segger, 4 pan head screws, 4 steel spacers, 1 Micro USB cable, 7 jumper pins, 10 through hole test wires|
|Size||W 80.0mm x D 173.5mm x H 14.0mm|
|Certification||Japan Radio Law, Bluetooth SIG|
For details, please see the product specification.
Product specifications are subject to change without notice.
ELECTRICAL DESIGN CAD DATA
CAD data in project file format that can be edited with the electronic CAD software "Quadcept".
Click here to request a quote for this product.
